2011 Coolster 150cc
$1595.00
Teenager Utility ATV
Rear Hydraulic
Disc Brakes

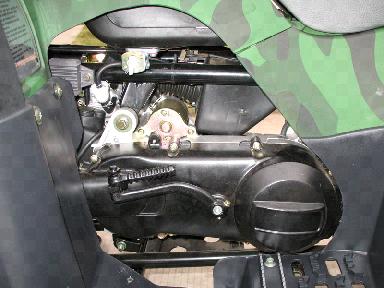

150cc Air Cooled Engine

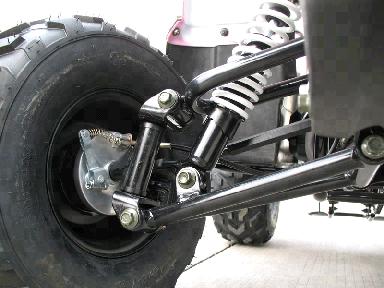

Dual Front Drum Brakes

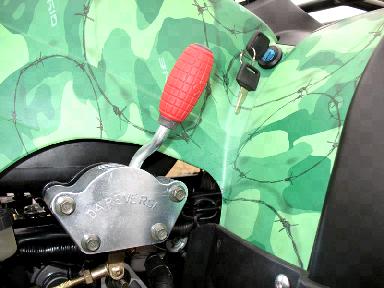

Reverse Gear Shifter

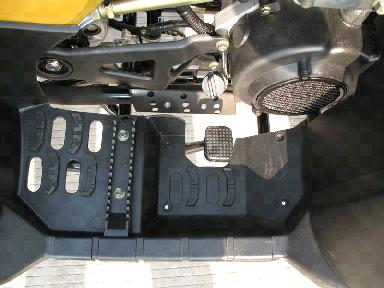

Enclosed Foot Rest
with Rear Hydraulic Brake

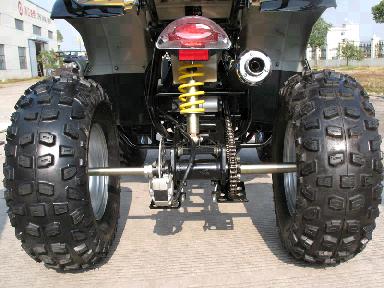

View of Rear Axle
2011 Coolster 150cc Utility ATV Specifications
Model No. ATV-3150DX Performance
Max Speed 40 MPH depending on rider weight and trail conditions
40 MPH depending on rider weight and trail conditions Min Speed 5 MPH using throttle limiter system
5 MPH using throttle limiter system Max Rider Weight 252 Pounds
252 Pounds Recommended Rider Age 10 + years of age
Engine Information
Size 150cc 4-stroke Gas Engine
150cc 4-stroke Gas Engine Gas Regular unleaded
Regular unleaded Cooling Air-cooled
Air-cooled Max horsepower 8.0 Hp @ 7500 RPM
8.0 Hp @ 7500 RPM Ignition CDI
CDI Starting system Electric start
Electric start Battery 12V, 9Ah
12V, 9Ah Engine oil ATV 4-stroke Oil 10W-40
ATV 4-stroke Oil 10W-40 Engine oil capacity 1 Quart
1 Quart Chassis Information
Transmission Fully automatic with constant variable transmission
Fully automatic with constant variable transmissionand Reverse. Driveline Chain to rear axle
Chain to rear axle Brakes, Rear Hydraulic disc brake
Hydraulic disc brake Brake, Front Dual Drum Brakes
Dual Drum Brakes Tires, Front 23 x 7-10, 23” Dia.
23 x 7-10, 23” Dia. Tires, Rear 23 x 7-10, 23” Dia.
23 x 7-10, 23” Dia. Suspension, Front Dual wishbone with shock
Dual wishbone with shock Suspension, Rear Swing axle with mono shock
Swing axle with mono shock Fuel capacity 1.50 Gallon
1.50 Gallon Weight, G.W 300 Pounds
300 Pounds Dimensions
L*W*H 74”L X 40” W x 42” H
74”L X 40” W x 42” H Height to seat 30”
30” Min ground clearance7.0”
7.0” Safety and Other Features
•Adjustable throttle limiter allows you to adapt the engine’s power as the
Adjustable throttle limiter allows you to adapt the engine’s power as the rider’s skill develops; it can limit the speed of the ATV anywhere from 5 to its maximum speed.
maximum speed. •Parking Brake
Parking Brake •Engine On/Off Power Switch
Engine On/Off Power Switch •Dual head lights high/low beam
Dual head lights high/low beam •Dual tail lights with brake light
Dual tail lights with brake light •ATV is completely assembled and checked for quality assurance.
ATV is completely assembled and checked for quality assurance. •Fully trail ready at time of purchase.
Fully trail ready at time of purchase. •Available colors:
Available colors:
Camo- Metallic Green Red
Red Colors
